Gemstone Style CP-4/Opal POOL CODE
SKU – G-CP4
- Smooth top rail with flush bottom rail
- 3-rail design
- 54” High POOL CODE – Residential & Commercial
- 6’ wide sections
- 8’ (93”oc) wide sections Commercial
- Sections can rake 8” over 6’ span.
- Double & triple punch for more rake
- Decorative Circles can be added.
- Puppy Picket can be added to any fence in many style options.
- Puppy Picket will disqualify Pool Code

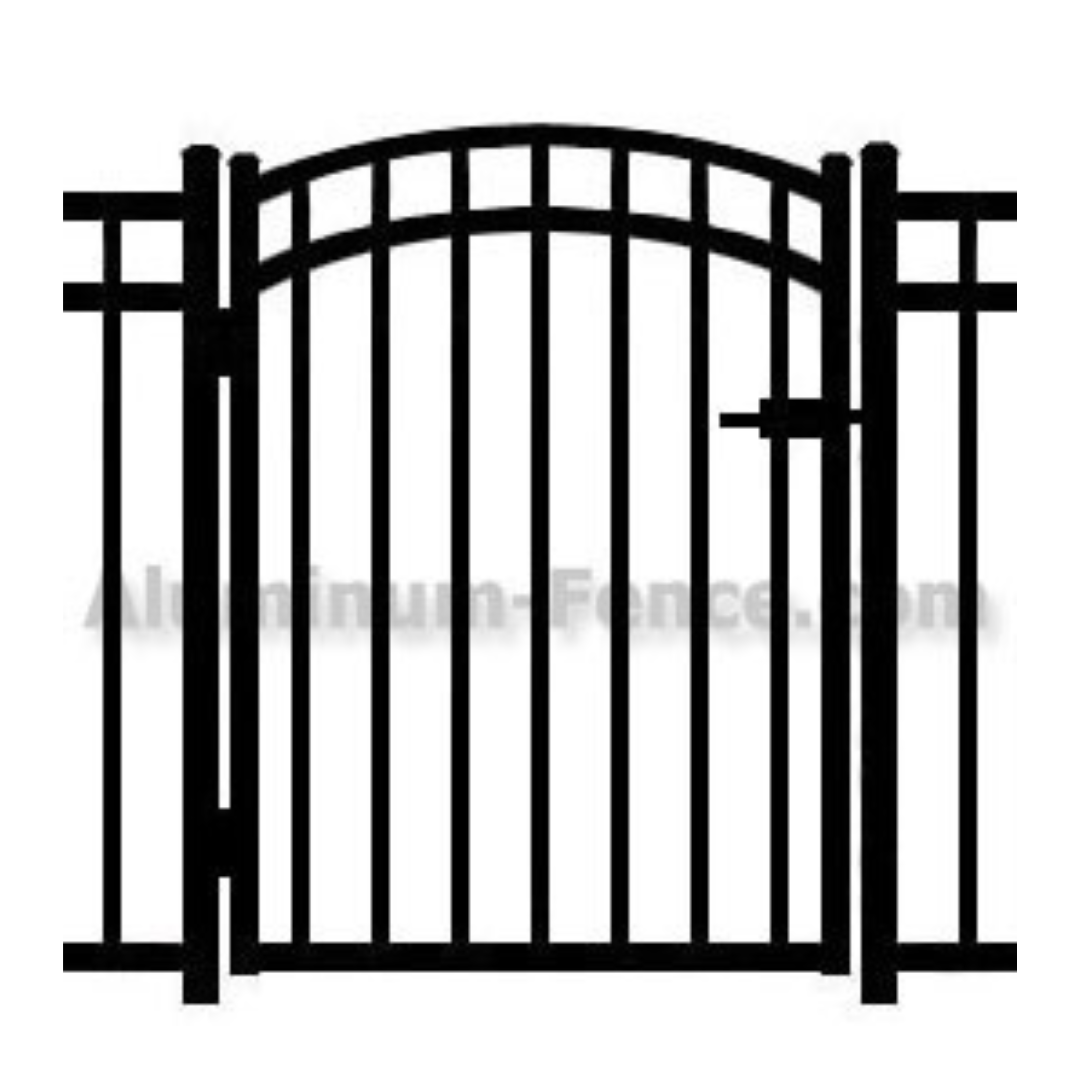

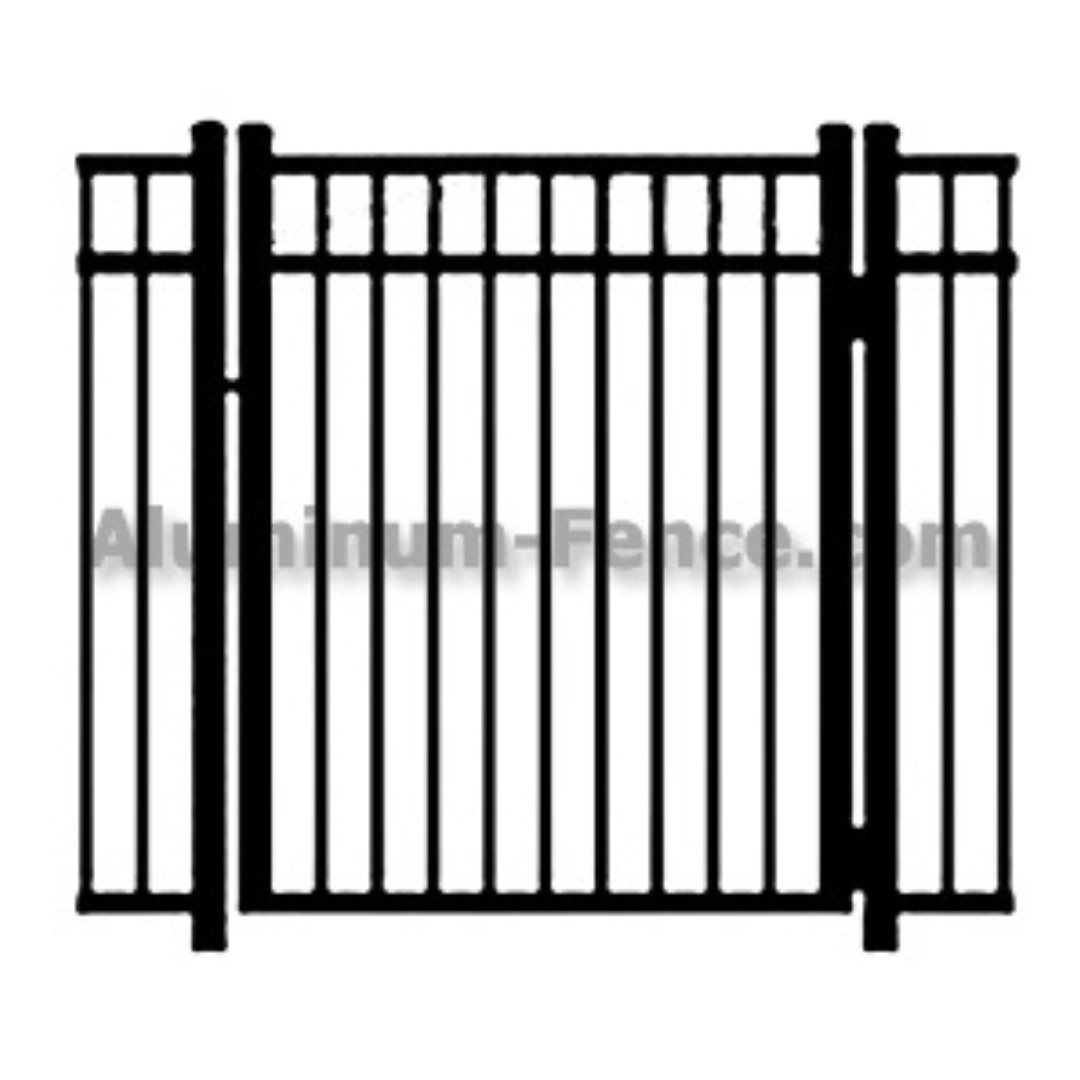

- Matching welded gates in Straight or Arch
- Welded Post Base Option for Surface Mount
colors
- Premium Fence
- X-Strong Rail Design of All
- Custom Fence Option
- Ships in 2 to 3 weeks
- Lowest Free Shipping
- Lifetime Warranty
- Fence Installation
- Fence Brochure
- Gemstone Accessories
- Description
- Specifications
The Opal 54” Pool Code is a flat top flush bottom 3-rail aluminum fence design. Pool Code at 54” high aluminum fence panels in most areas. Check your local zoning board for what code is in your town. This is a popular simple, clean, and strong design aluminum fence panel for Pool Code Aluminum Fence. Gemstone Aluminum™ fencing is our premium product for a lifetime of value for your home or business. Only the strongest aluminum alloys are used and incorporate 20% more aluminum in our fence rails than most competitors. Gemstone has the thickest residential rail at .082. This classic ornamental fence design is available in residential, commercial, and industrial grade aluminum fence panels. Comes fully assembled and ready to install.
Pickets: Residential 5/8'' square x .050; Commercial ¾” square x .050; Industrial 1” square x .062” wall
Spacing between Pickets: Residential standard 3-13/16'' and optional 1-5/8”; Commercial standard 3-13/16” and optional 1-1/2”; Industrial standard 4” and optional 1-1/2”
Fasteners: Stainless steel
Horizontal Rails: Residential 1'' x 1'' with .082'' side walls and .060'' top walls; Commercial 1-1/4” x 1-5/8” with .090'' side walls and .070'' top walls; Industrial 1-5/8” x 1-5/8” with .100” side walls and .070” top walls – ALL RAILS ARE TRIPLE REINFORCED FOR ADDED LATERAL SUPPORT.
Posts: Residential 2'' square x .060 or .125; 2-1/2” square x .075; Commercial 2-1/2” square x .075; and 3” square x .125; Industrial 2-1/2” square x .075 and 3” square x .125; 4” square x .125 – All posts include standard flat caps.
Alloy: High-strength 6105-T6 alloy, min. strength 35,000 PSI
Finish: Kolor King®. When applied, Kolor King® finish is 3-4 mils thick baked-on and thermally bonded. Super durable polyester powder coating formulated for the toughest outdoor environments. Our coating provides up to twice the durability for gloss and color retention, compared with standard coatings. Maintenance free – warranted against chipping, peeling, or cracking.

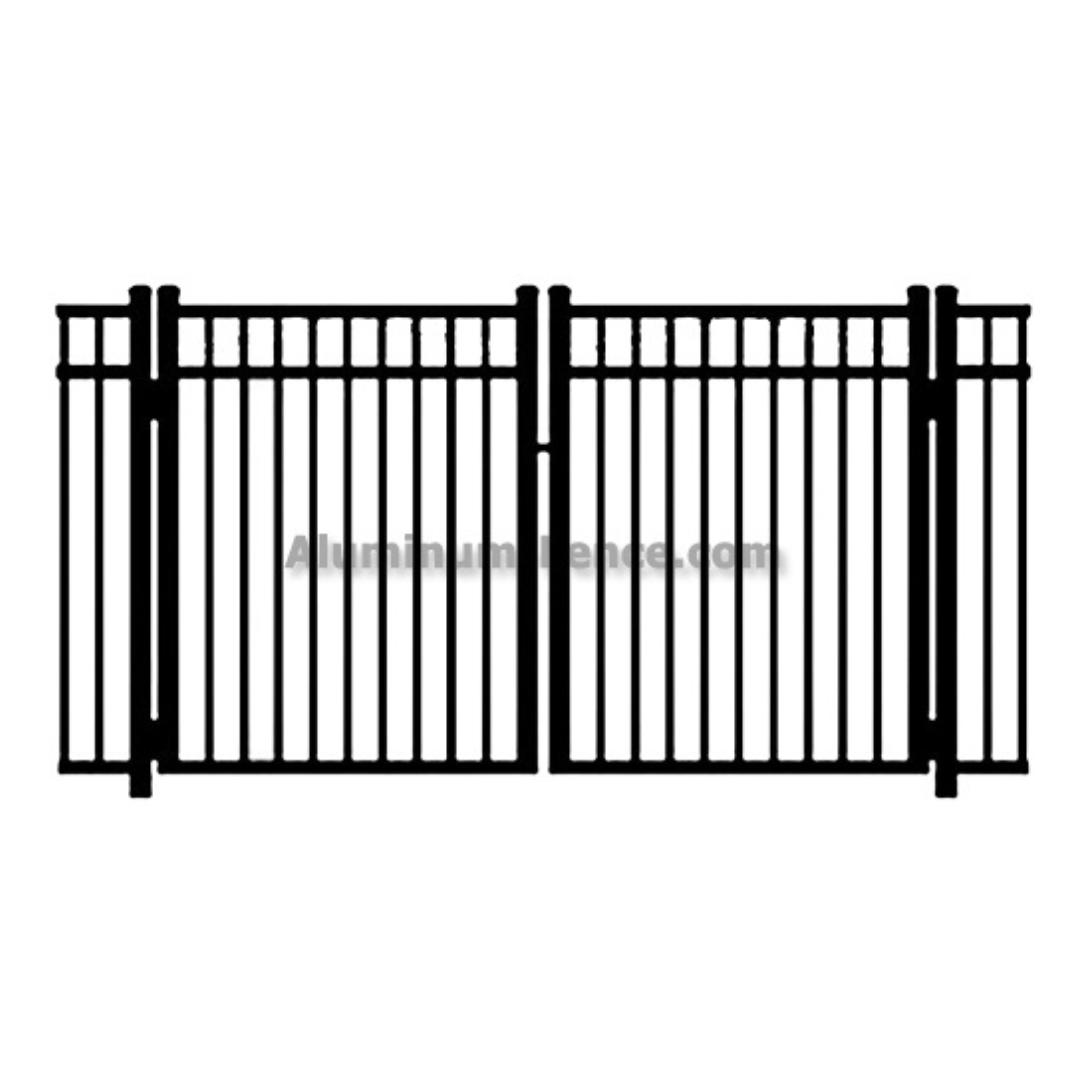

Gates: Welded gates in standard openings of 3’, 4’, 5’ – custom openings available.
Post Spacing: 72-1/2” on center for residential – 70-1/4” & 93” commercial – 73-1/2” & 97” on center for Industrial.
Weight Held by 6’ wide Section: Residential – 350 lbs. Commercial – 500 lbs. – Industrial – 1,000 lbs.
