Gemstone Style EP-2/Jade
SKU – G-EP2
- Alternating spear points above the top 3-rails
- 3’, 3-1/2’, 4’, 5’, 6’ High – Residential
- 4, 4-1/2’, 5’, 6’ Commercial
- 4’, 5’, 6’, 7’, 8’ High – Industrial
- 72-1/2” wide sections Residential & Commercial
- 8’ (93”) wide sections Commercial
- Sections can rake 8” over 6’ span.
- Add a flush bottom – No Charge
- Double & triple punch for more rake
- Decorative finials can be added
- Decorative circles can be added
- Puppy Picket can be added to any fence in many style options.
- Matching welded gates in Straight or Arch
- Welded Post Base Option for Surface Mount
colors
- Premium Fence
- X-Strong Rail Design of All
- Custom Fence Option
- Ships in 2 to 3 weeks
- Lowest Free Shipping
- Lifetime Warranty
- Fence Installation
- Fence Brochure
- Gemstone Accessories
- Description
- Specifications

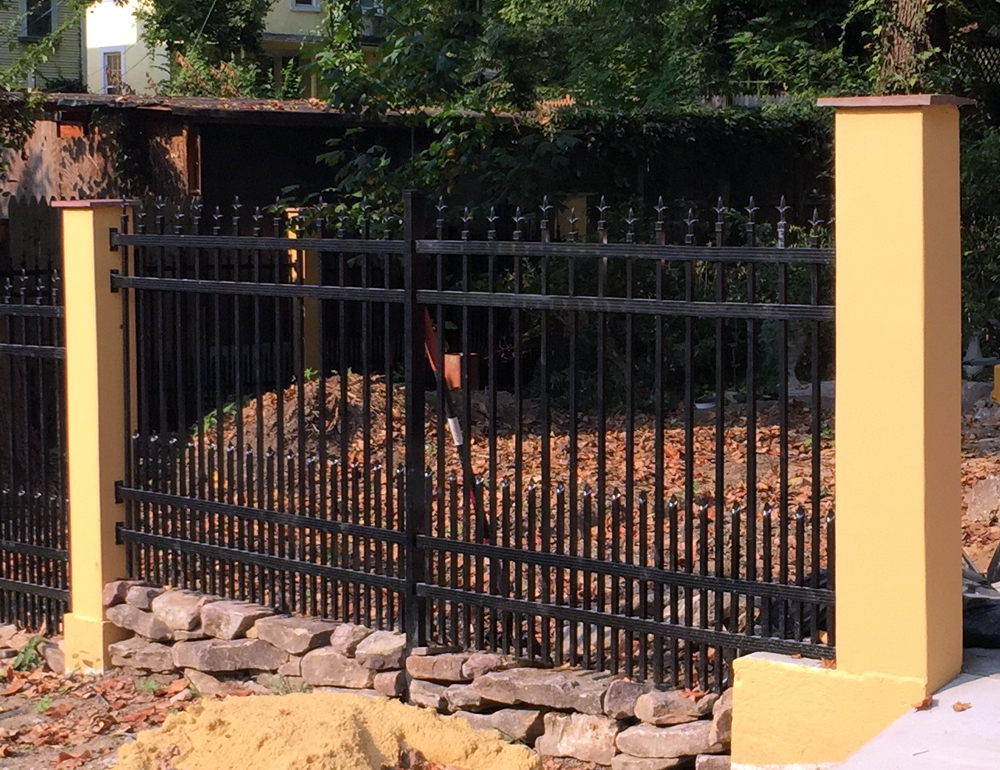

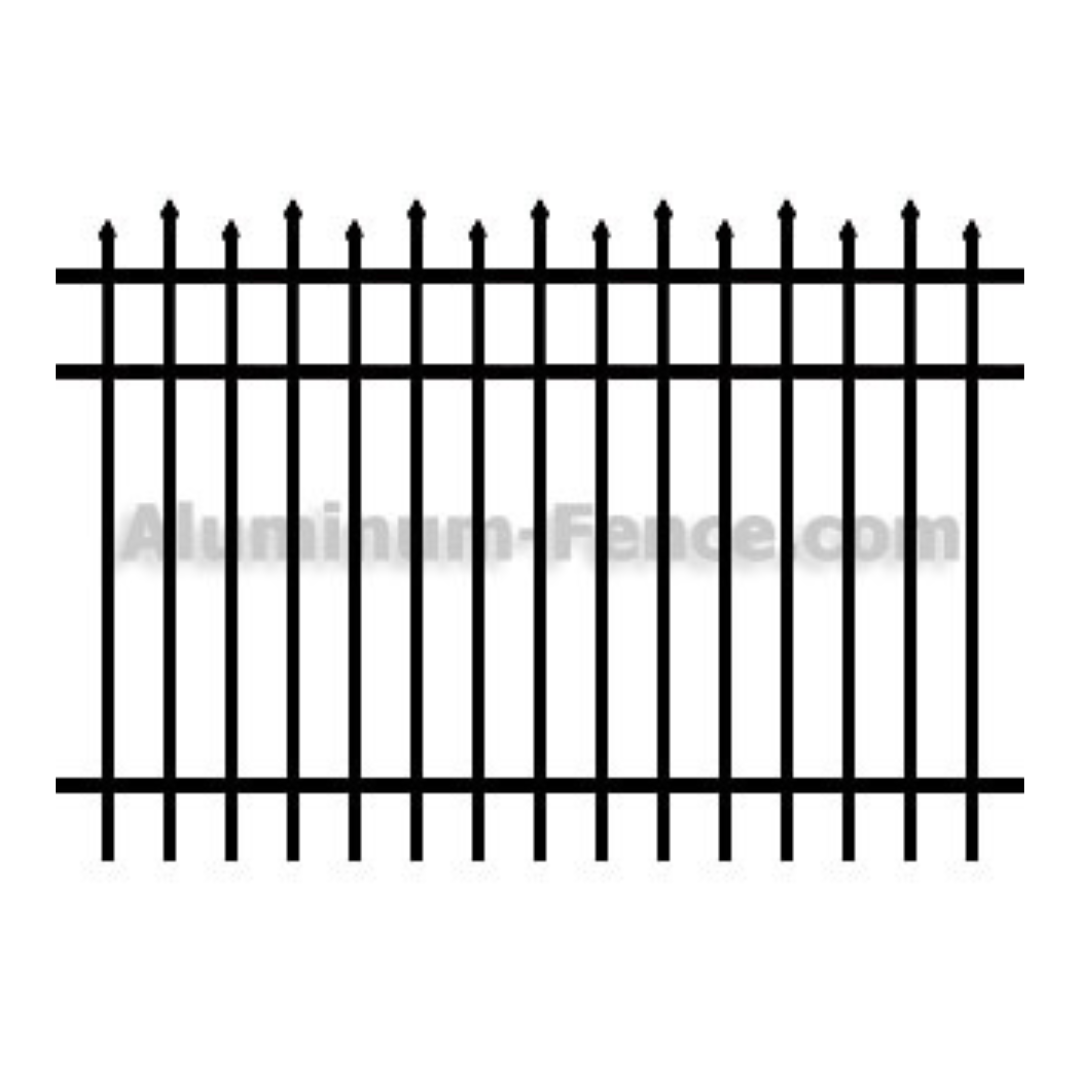

The Jade is 3-rails with alternating spear points heights above top rail aluminum fence. A more decorative old style looks and strong design aluminum fence panel. The Jade design in Gemstone Aluminum™ fencing is one of our best-selling products for quality and style. Gemstone Aluminum™ fencing is our premium product for a lifetime of value for your home or business. Only the strongest aluminum alloys are used and incorporate 20% more aluminum in our fence rails than most competitors. Gemstone has the thickest residential rail at .082. This classic ornamental fence design is available in residential, commercial, and industrial grade aluminum panels. Comes fully assembled and ready to install.
Pickets: Residential 5/8'' square x .050; Commercial ¾” square x .050; Industrial 1” square x .062” wall
Spacing between Pickets: Residential standard 3-13/16'' and optional 1-5/8”; Commercial standard 3-13/16” and optional 1-1/2”; Industrial standard 4” and optional 1-1/2”
Fasteners: Stainless steel
Horizontal Rails: Residential 1'' x 1'' with .082'' side walls and .060'' top walls; Commercial 1-1/4” x 1-5/8” with .090'' side walls and .070'' top walls; Industrial 1-5/8” x 1-5/8” with .100” side walls and .070” top walls – ALL RAILS ARE TRIPLE REINFORCED FOR ADDED LATERAL SUPPORT.
Posts: Residential 2'' square x .060 or .125; 2-1/2” square x .075; Commercial 2-1/2” square x .075; and 3” square x .125; Industrial 2-1/2” square x .075 and 3” square x .125; 4” square x .125 – All posts include standard flat caps.
Alloy: High-strength 6105-T6 alloy, min. strength 35,000 PSI
Finish: Kolor King®. When applied, Kolor King® finish is 3-4 mils baked-on and thermally bonded. Super durable polyester powder coating formulated for the toughest outdoor environments. Our coating provides up to twice the durability for gloss and color retention, compared with standard coatings. Maintenance free – warranted against chipping, peeling, or cracking.

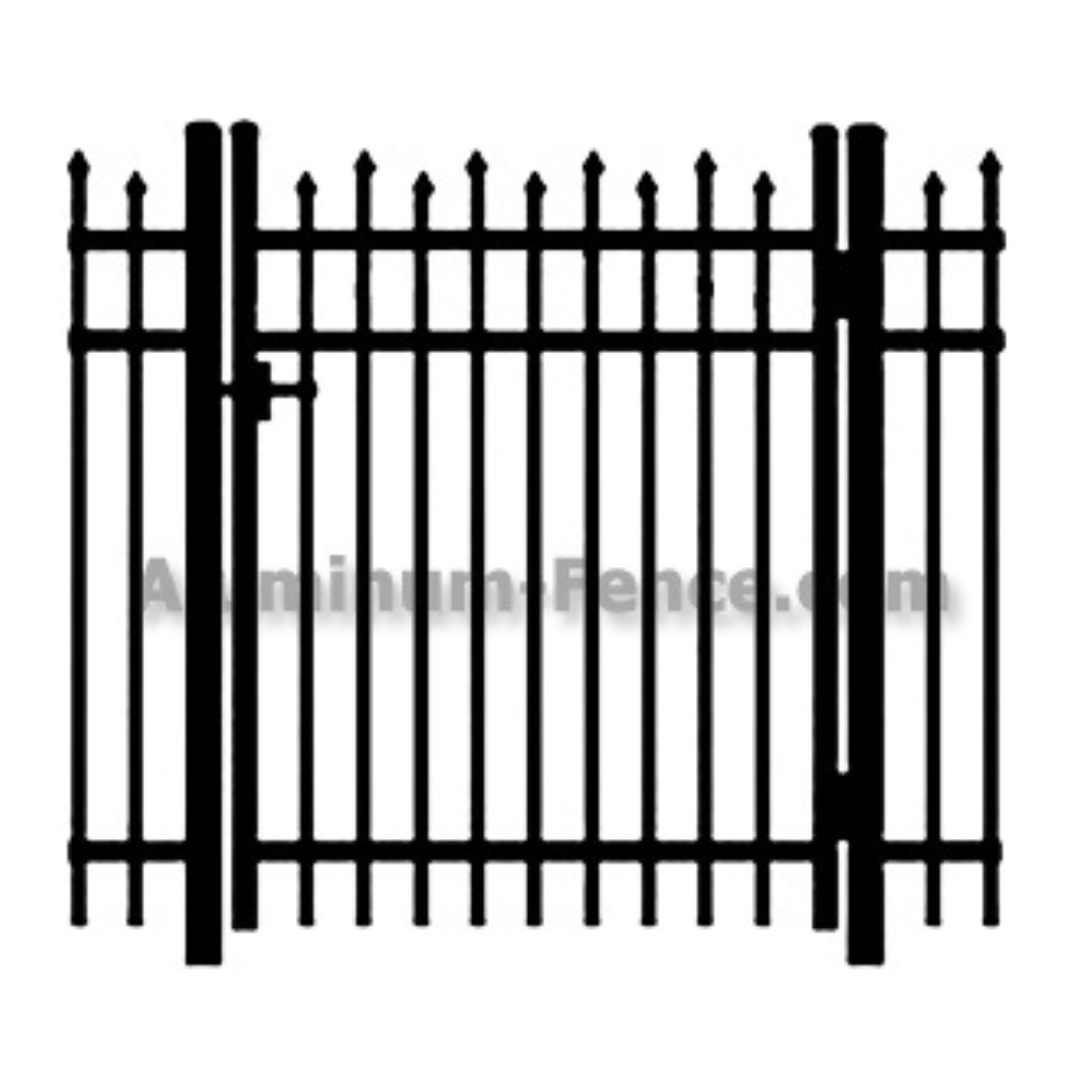

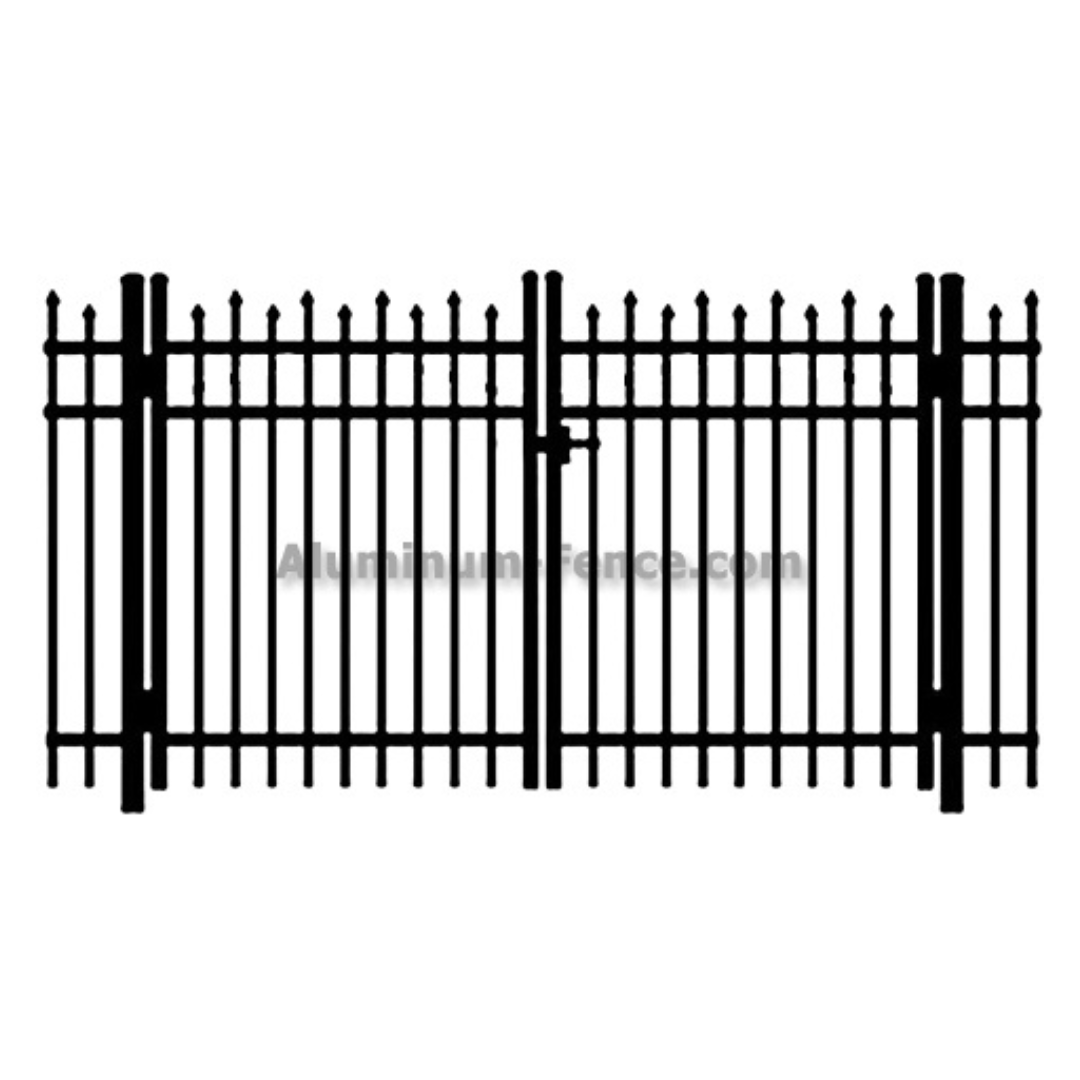

Gates: Welded gates in standard openings of 3’, 4’, 5’ – custom openings available.
Post Spacing: 72-1/2” on center for residential – 70-1/4” & 93” commercial – 73-1/2” & 97” on center for Industrial.
Weight Held by 6’ wide Section: Residential – 350 lbs. Commercial – 500 lbs. – Industrial – 1,000 lbs.
