iDeal Style CP-7/Carolina
SKU – I-CP7
- Flat top rail 3-rail design
- 3’, 3-1/2’, 4’, 4-1/2’, 5,’ 6’ High – Residential
- 3’, 3-1/2’, 4’, 4-1/2’, 5’, 6’, 7’, 8’ Commercial & Industrial
- Puppy Picket on and style
- Double Picket on any style – 1-9/16” spacing
- Playground Fence on any style – 2-3/4” spacing
- Decorative circle can be added
- Flush bottom on any fence – NO CHARGE
- Sections can rake 8” over 6’ span. See link to right for all raking
- Double & Triple Punch for more rake – NO CHARGE

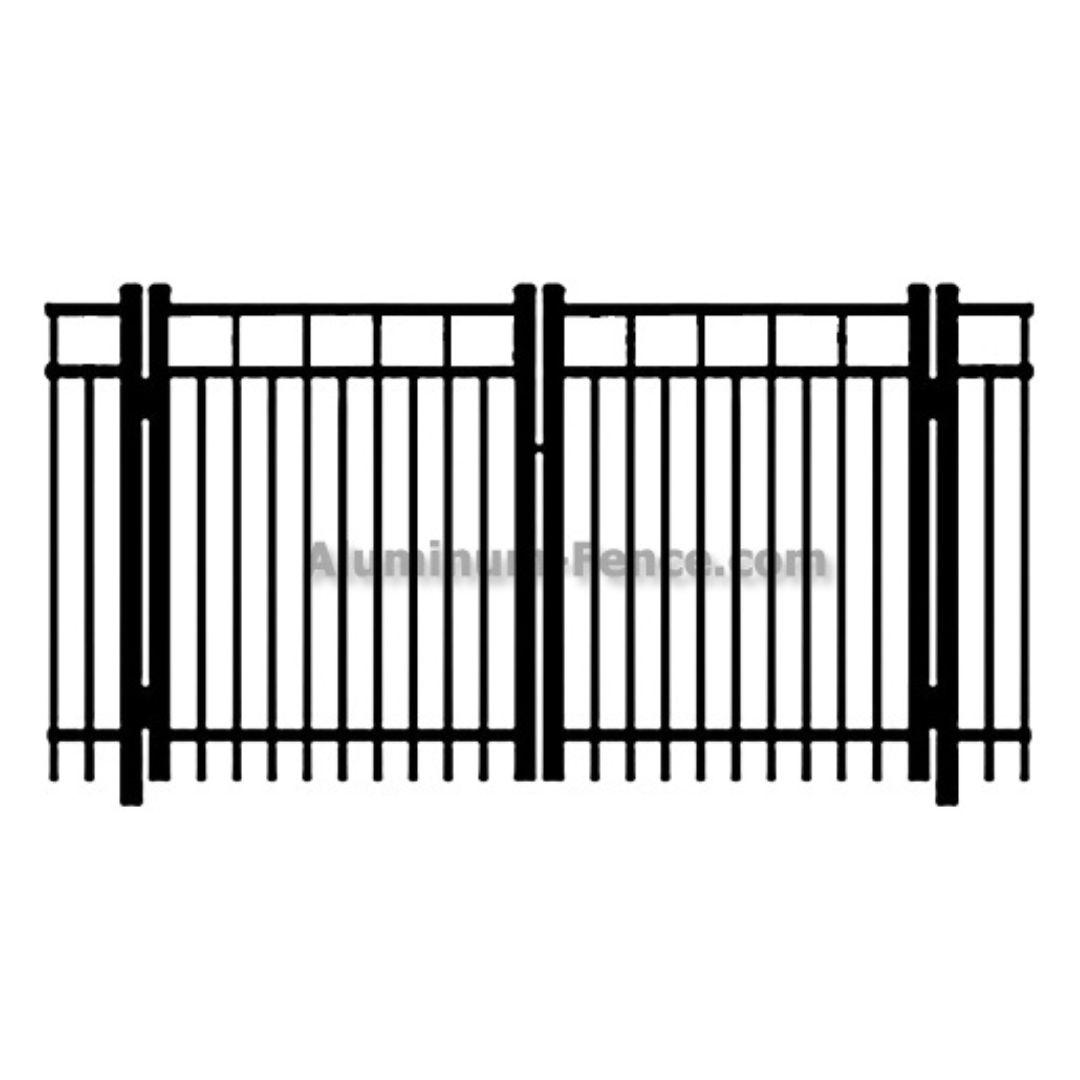

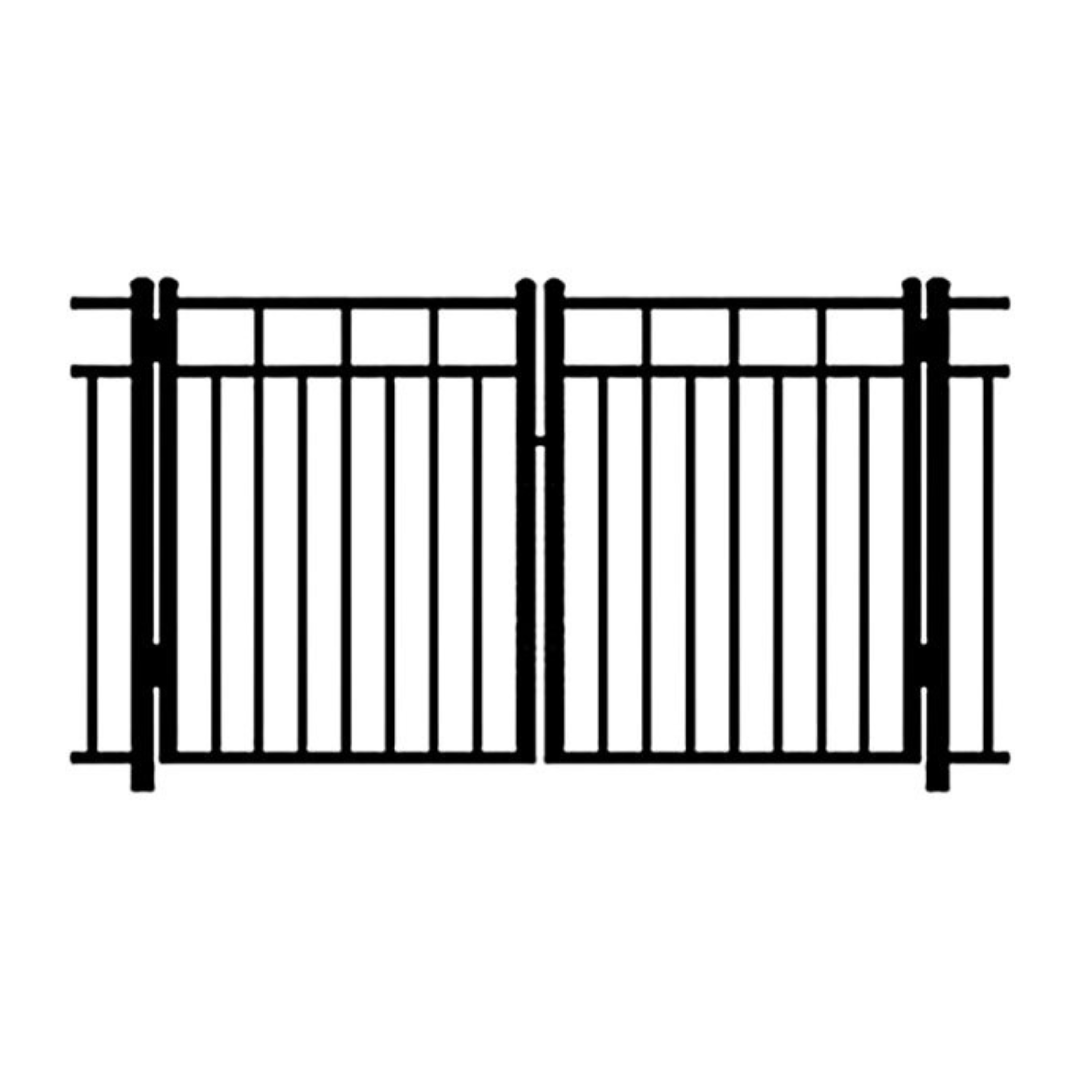

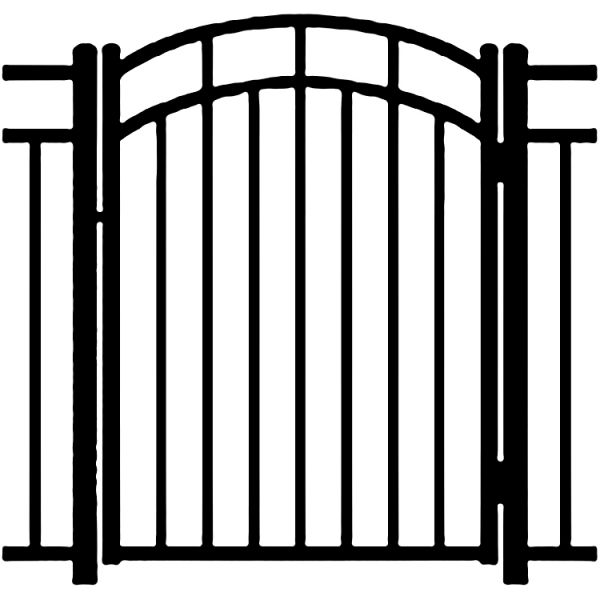

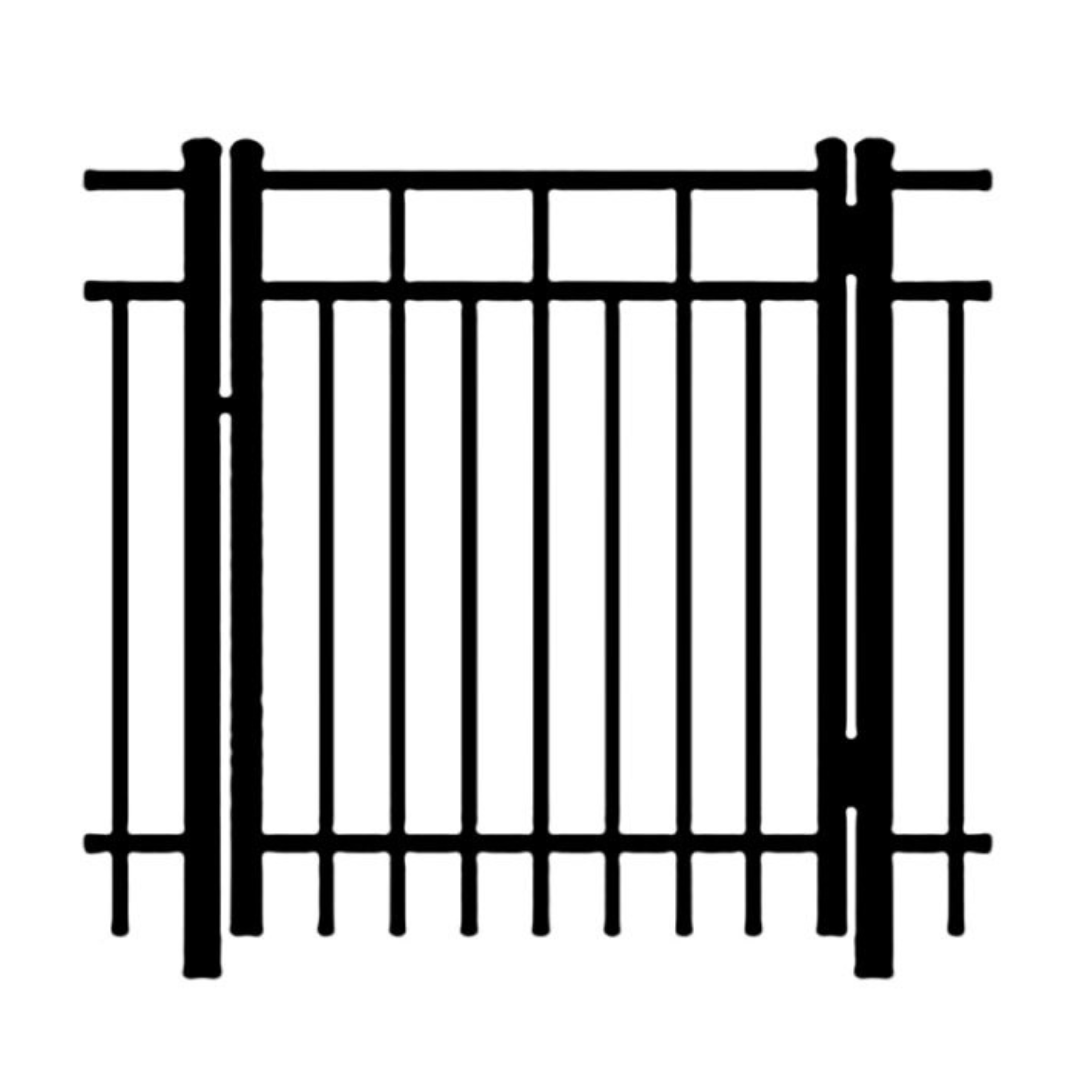

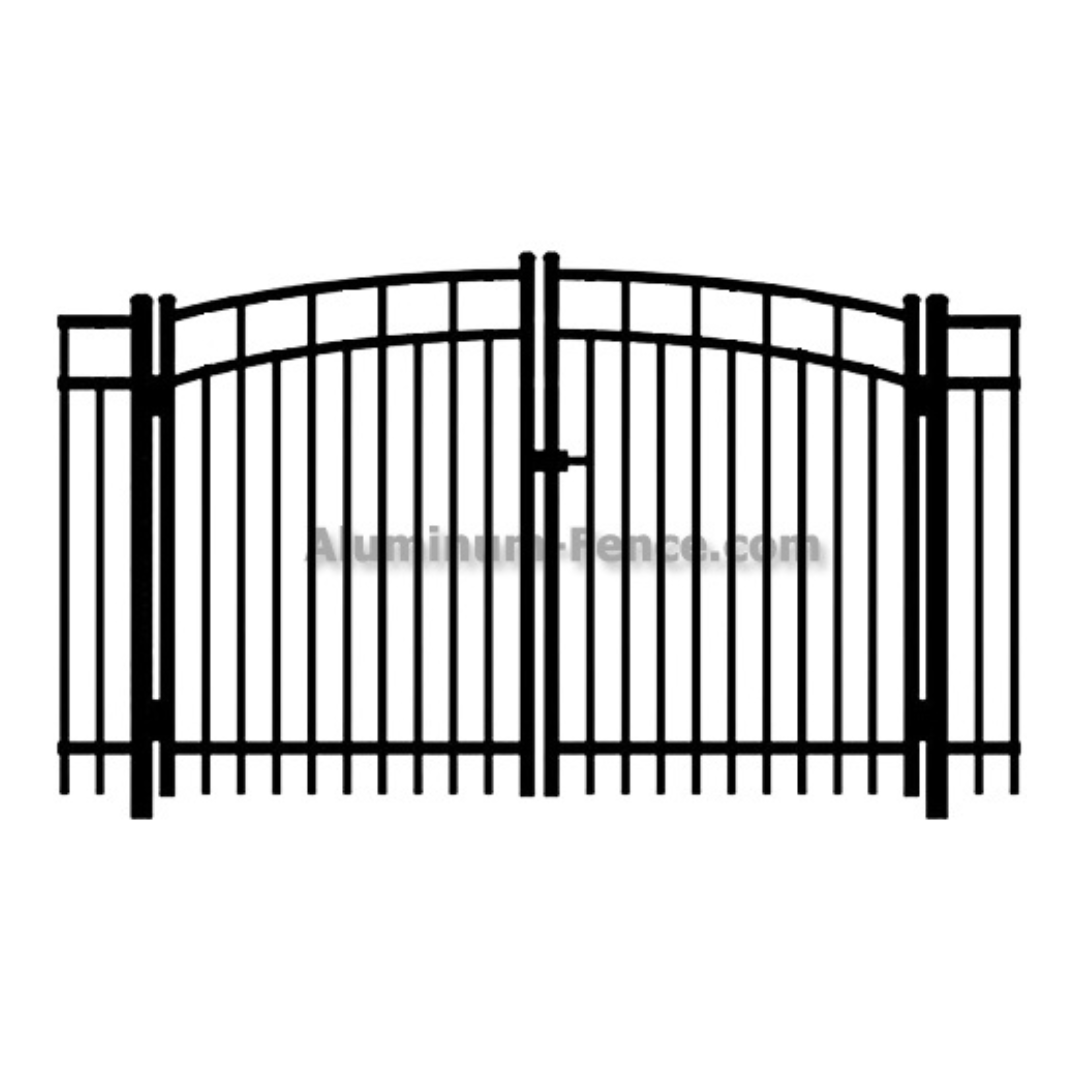

- Matching welded gates in Straight or Arch
- Welded Post Base Option for Surface Mount
colors
- Largest Fence Selection
- Largest Drive Gate Selection
- Quick Ship Fence 3 to 5 days
- Ships in 3 to 4 weeks
- Low Flat Shipping Cost
- Free Shipping
- Lifetime Warranty
- Fence Installation
- Fence Brochure
- iDeal Green Technology
- Fence Rack
- iDeal Accessories
- Description
- Specifications

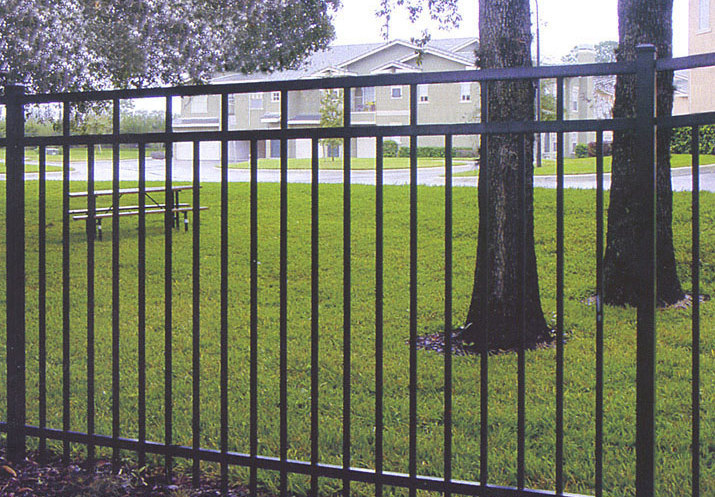

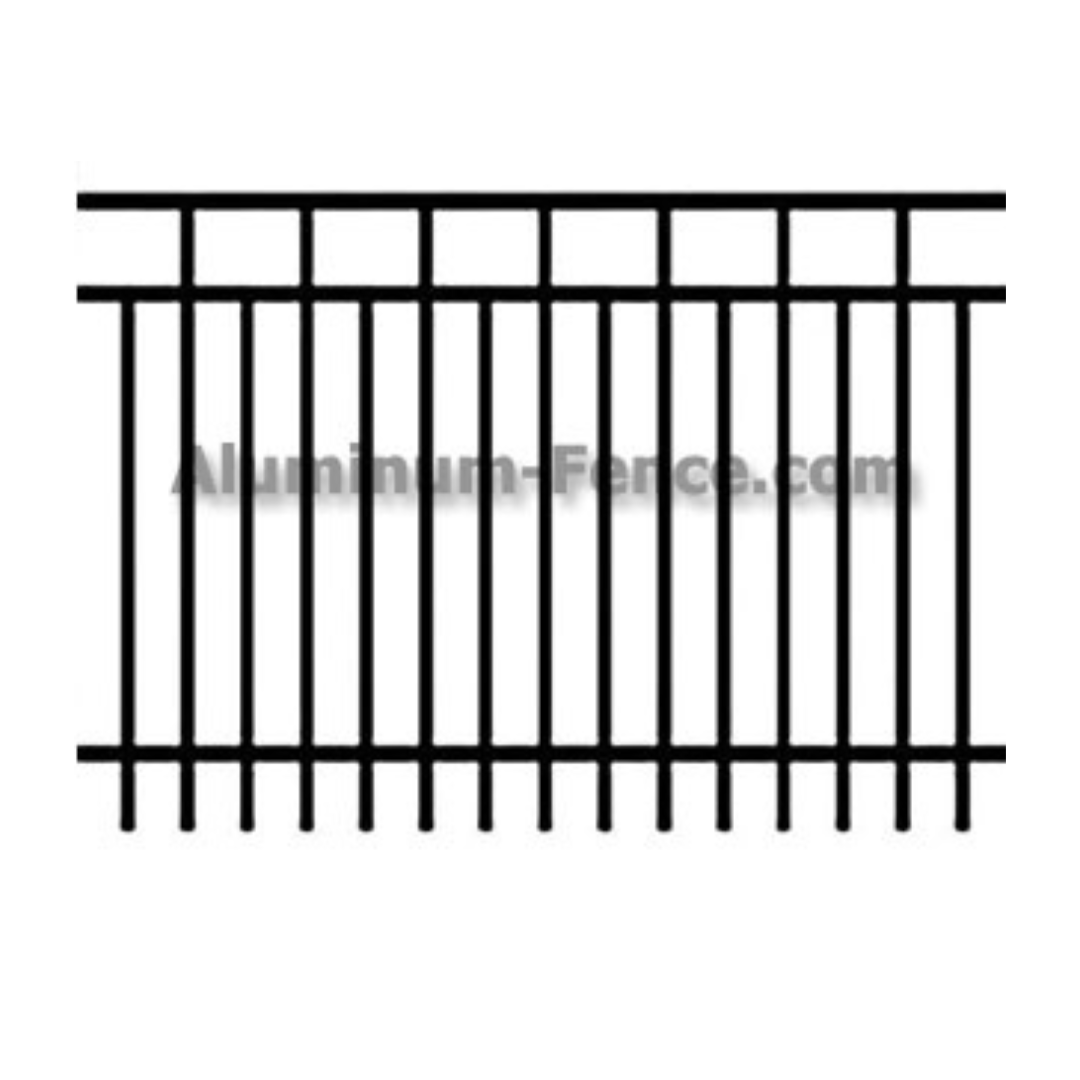

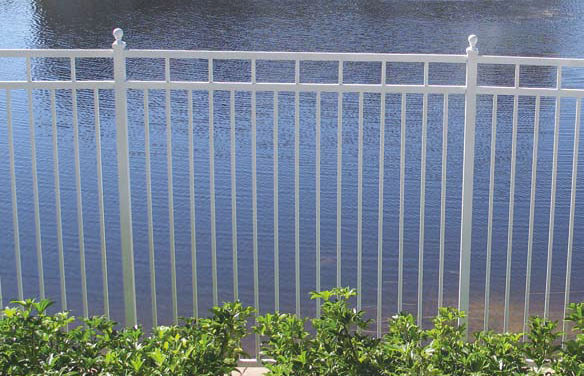

The Carolina is flat top 3-rail aluminum fence panel. Same as the # 300 Long Islander but with an more open top between the top 2 rails. This is a unique looking aluminum fence for style. Only iDeal Aluminum™ makes this standard style in all grades and Pool Code. iDeal Aluminum™ fencing is our most customizable premium product for a lifetime of value for your home or business. Only the strongest aluminum alloys are used. This classic ornamental fence design is available in residential, commercial, and industrial grade aluminum grades. Standard spacing (3-13/16”), double picket (1-9/16”) & playground spacing (2-3/4”). Comes in fully assembled aluminum panels and ready to install.
Pickets: Residential 5/8'' square x .050; Commercial ¾” square x .060; Industrial 1” square x .062” wall
Spacing between Pickets: Residential standard 3-13/16'' and optional 1-9/16” or 2-3/4”; Commercial standard 3-13/16” and optional 1-9/16” or 2-3/4”; Industrial standard less than 4” and optional 1-1/2” or 2-3/4”
Fasteners: Stainless steel
Horizontal Rails: Residential 1-1/16'' x 1'' with .072'' side walls and .062'' top walls; Commercial 1-1/16” x 1-1/2” with .072'' side walls and .062'' top walls; Industrial 1-5/8” x 1-5/8” with .100” side walls and .070” top walls Posts: Residential 2'' square x .062, x .093” or .125; 2-1/2” square x .075; Commercial 2-1/2” square x .075; and 3” square x .093 or .125; Industrial 2-1/2” square x .075 and 3” square x .093 or x .125; 4” square x .125, 6” square x .125” – All posts include standard flat caps.
Alloy: High-strength 6063-T5 alloy on pickets & posts, 6005 T5 alloy on posts and rails min. strength 35,000 PSI
Finish: Our Idealcoat powder coating has been certified as meeting AAMA 2604 and AAMA 2605 standards, to provide an industry leading finish to all our materials. Maintenance free – warranted against chipping, peeling, or cracking.
Gates: Welded gates in standard openings of 3’, 4’, 5’, 6’ – custom openings available.
Post Spacing: 72” on center for residential – 71-1/8” & 94-3/4” commercial – 71” & 96” on center for Industrial.
Weight Held by 6’ wide Section: Residential – 350 lbs. Commercial – 500 lbs. – Industrial – 1,000 lbs.
