iDeal Style CP-3/Alamo POOL CODE
SKU – I-CP3
- Flat top rail 2-rail with flush bottom
- 3’, 3-1/2’, 4’, 4-1/2’, 5,’ High – Residential, Commercial & Industrial
- 4’, 4-1/2’, 5’ All POOL CODE
- Double Picket on any style – 1-9/16” spacing
- Playground Fence on any style – 2-3/4” spacing
- Sections can rake 8” over 6’ span. See link to right for all raking
- Double & Triple Punch for more rake – No Charge
- Matching welded gates in Straight or Arch
- Welded Post Base Option for Surface Mount
colors
- Largest Fence Selection
- Largest Drive Gate Selection
- Quick Ship Fence 3 to 5 days
- Ships in 3 to 4 weeks
- Low Flat Shipping Cost
- Free Shipping
- Lifetime Warranty
- Fence Installation
- Fence Brochure
- iDeal Green Technology
- Fence Rack
- iDeal Accessories
- Description
- Specifications
The Alamo is flat top 2-rail flush bottom design. This is primarily used for POOL CODE at 4’ high to see less obstruction and preserve the view. This aluminum fence panel is a very popular design. iDeal Aluminum™ fencing is our most customizable premium product for a lifetime of value for your home or business. Only the strongest aluminum alloys are used. This classic ornamental fence design is available in residential, commercial, and industrial grade aluminum grades. Standard spacing (3-13/16”), double picket (1-9/16”) & playground spacing (2-3/4”). Comes fully assembled and ready to install.
Pickets: Residential 5/8'' square x .050; Commercial ¾” square x .060; Industrial 1” square x .062” wall
Spacing between Pickets: Residential standard 3-13/16'' and optional 1-9/16” or 2-3/4”; Commercial standard 3-13/16” and optional 1-9/16” or 2-3/4”; Industrial standard less than 4” and optional 1-1/2” or 2-3/4”
Fasteners: Stainless steel
Horizontal Rails: Residential 1-1/16'' x 1'' with .072'' side walls and .062'' top walls; Commercial 1-1/16” x 1-1/2” with .072'' side walls and .062'' top walls; Industrial 1-5/8” x 1-5/8” with .100” side walls and .070” top walls Posts: Residential 2'' square x .062, x .093” or .125; 2-1/2” square x .075; Commercial 2-1/2” square x .075; and 3” square x .093 or .125; Industrial 2-1/2” square x .075 and 3” square x .093 or x .125; 4” square x .125, 6” square x .125” – All posts include standard flat caps.
Alloy: High-strength 6063-T5 alloy on pickets & posts, 6005 T5 alloy on posts and rails min. strength 35,000 PSI
Finish: Our Idealcoat powder coating has been certified as meeting AAMA 2604 and AAMA 2605 standards, to provide an industry leading finish to all our materials. Maintenance free – warranted against chipping, peeling, or cracking.

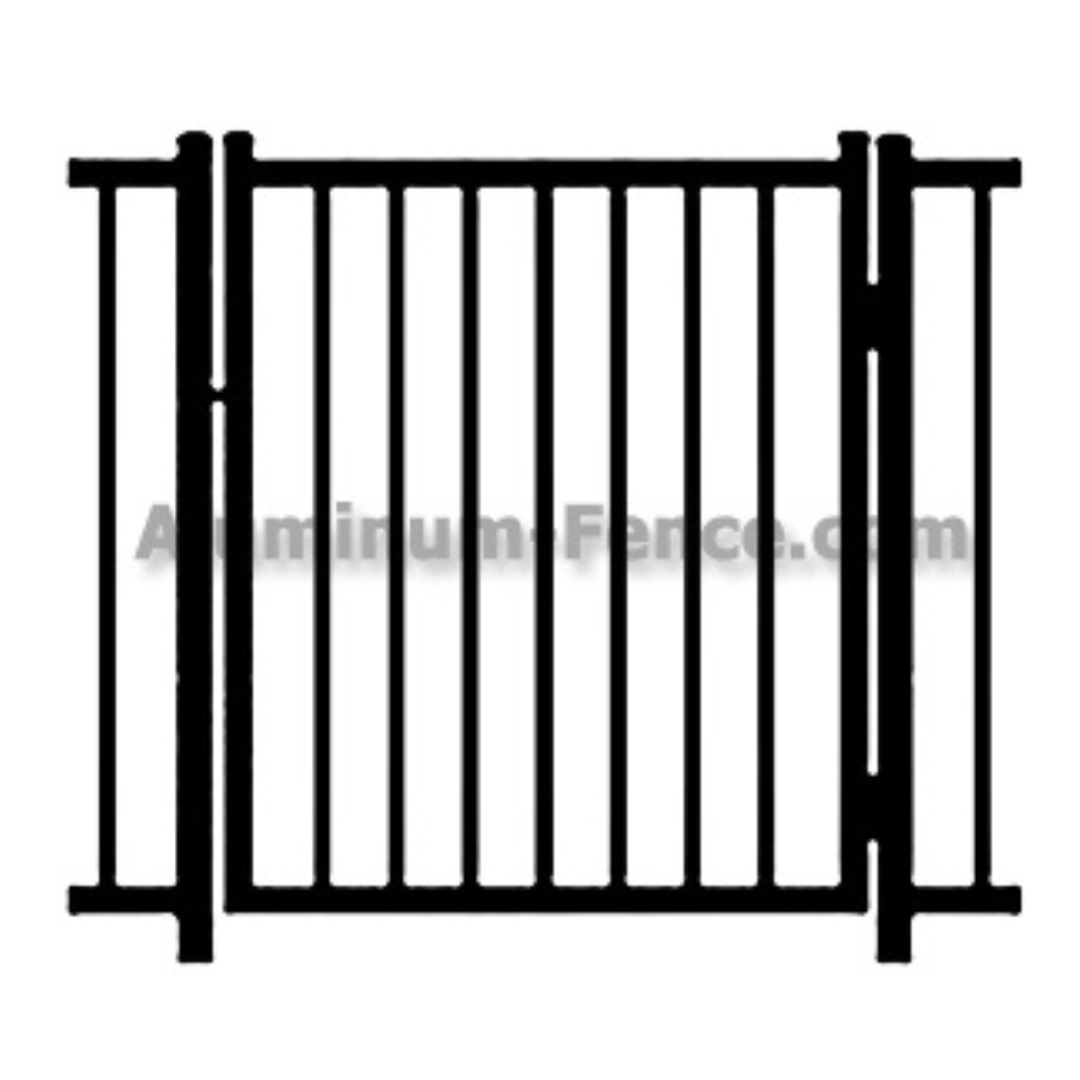

Gates: Welded gates in standard openings of 3’, 4’, 5’, 6’ – custom openings available.
Post Spacing: 72” on center for residential – 71-1/8” & 94-3/4” commercial – 71” & 96” on center for Industrial.
Weight Held by 6’ wide Section: Residential – 350 lbs. Commercial – 500 lbs. – Industrial – 1,000 lbs.
